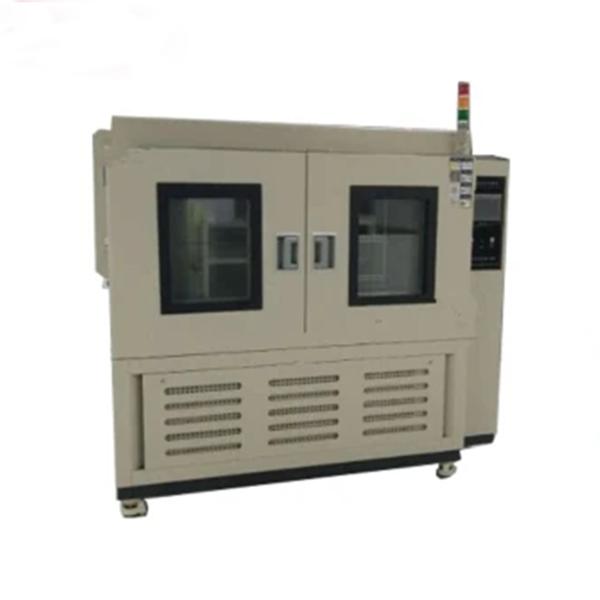

Measuring Equipment Environmental Stability Temperature Humidity Test Chamber OEM
Product Features:
High and low temperature test chamber, also known as environmental testing machine, tests a variety of materials heat, cold, dry, moisture resistance. Suitable for electronics, electrical appliances, food, vehicles, metals, chemicals, building materials and other factories.
Used for reliability test of industrial products at high and low temperature. Test the performance indexes of components and materials of electronic and electrician, automobile and motorcycle, aviation and aerospace, ship weapon, universities and research institutes under the condition of high and low temperature (alternating) cycle.
Performance parameters:
Temperature | Model | G100 | G150 | G200 | G400 | PG800 | G1000 | | Inner chamber size W×H×D(cm) | 50×50×40 | 50×60×50 | 60×75×50 | 80×85×60 | 100×100×80 | 100×100×100 | | Exterior chamber size W×H×D(cm) | 78×157×105 | 78×167×115 | 88×185×115 | 108×195×125 | 128×210×145 | 128×210×165 | | Testing temperature range | 0ºC,-20ºC,-40ºC,-70ºC~180ºC | | Testing humidity range | 10%RH~98%RH | | Temp.humi.fluctuation | ±0.3ºC;±0.5%RH | | Temp.humi.uniformity | ±2ºC;±3% empty loading after stablize for 30mins ±2ºC;±3%RH | | Temp.humi.resolution | 0.01ºC;0.1%RH | | Heating&cooling time ºC/min | Heat-up:3ºC/min(average),cool-down:1ºC/min(average) | | Exterior chamber material | Cold rolled plate + Powder coating | | Interior chamber material | SUS#304 Stainless steel | | Insulation material | Rigid Polyurethane foam | | Circulation system | Centrifugal fan air circulation system | | Heating system | SUS# Stainless steel high-speed heater | | Humidification system | Electrothermal steam humidification | | Dehumidifying | ADP critical dew point cooling / dehumidifying method | | Refrigeration system | Finned evaporator + Air(Water) cooling condenser | | Controlling system | Touch screen controller | | Other components | Vacuum glass observation window | | Test hole(100mm) | | Controller status indicator | | View light | | Compartment shelf (2 freely adjustable) | | Safety protection device | Overheat protection circuit breaker | | Humidification system overheat protection | | Compressor overload protection | | Control system overload protection | | overload indicator | | Phase sequence protection | | Water shortage protection | | High voltage and low voltage protection | | Over temperature protection | | Water supply delay protection | | Fan overcurrent protection | | Power supply | AC 1ψ220V;3ψ380V 60/50Hz | | Customization service | Non-standard or special requirements are all welcome | |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
